1949-1951 Chevy 3100 Conversion Kit

Base kit: $50,000

82 kWH (250 Miles of range)

295 Hp, 243 Ft-LB

High power kit: $55,000

82 kWH (250 Miles of range)

670 Hp, 479 Ft-LB.

Contact roviumev@gmail.com or call (541) 272-0080 for lead time and orders

1949-1951 Chevy 3100 Conversion Kit

Base kit: $45,000

82 kWH (250 Miles of range)

295 Hp, 243 Ft-LB

High power kit: $50,000

82 kWH (250 Miles of range)

670 Hp, 479 Ft-LB

A mechanical robotic chassis with suspension, wheels, and a central component that appears to be a motor or engine.
A 3D CAD drawing of an industrial or laboratory oven or furnace with a flat, metallic top, control panel on the front right, and a sliding tray extending from the front.

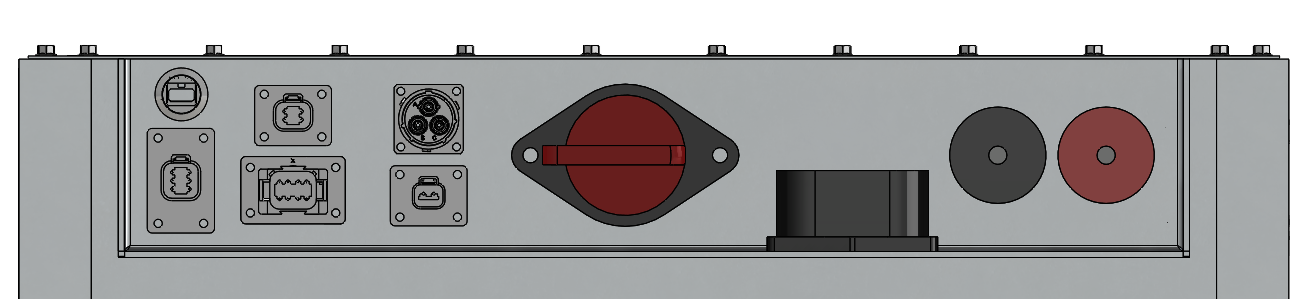

Back panel of electronic equipment with various ports, connectors, and power outlets.

Cross member 1

  • Comes welded and assembled

  • Comes with frame boxing rails

A metal cylindrical shock absorber with eyelets at both ends.

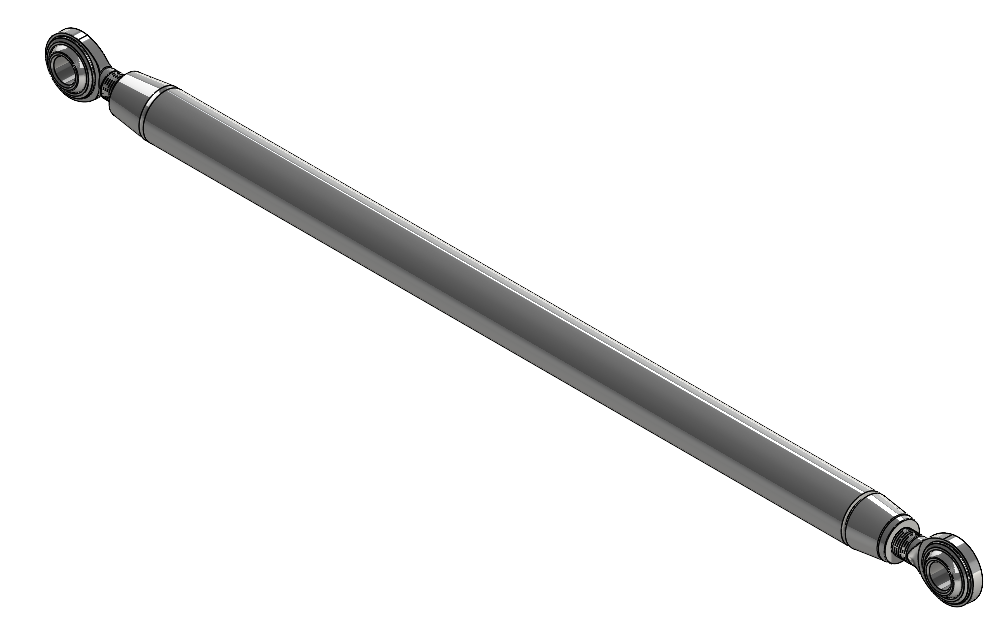

Pan Hard Bar

  • Comes welded and assembled

  • Bolts into cross member

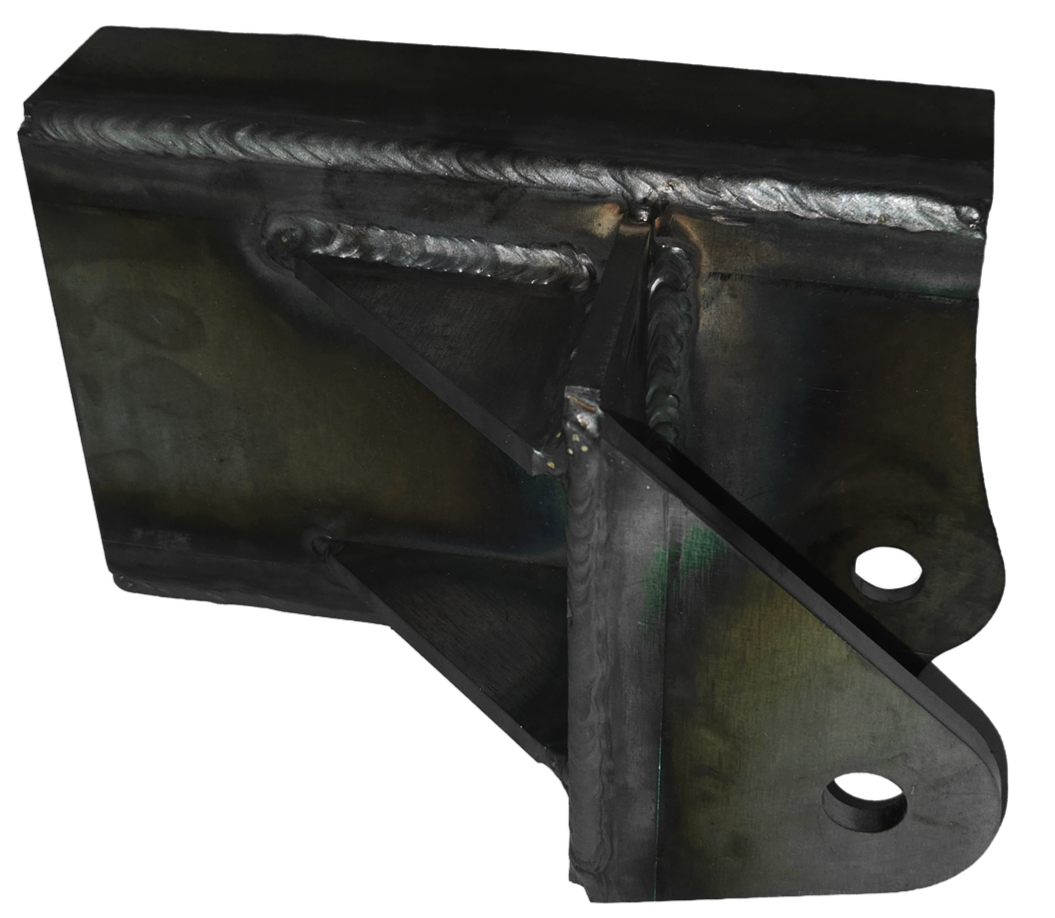

Trailing arm bracket

  • Comes welded and assembled

  • Welds into C channel of frame

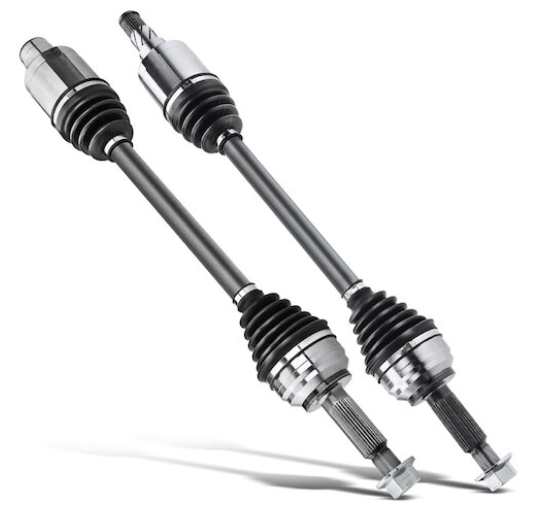

Two automotive driveshafts with universal joints, black and metallic finish.

Tesla CV Axles

  • Connects motor to wheel bearings

Bolt in “Plug and play” 82 kWh Battery

Enclosed Electronics

  • T2C controller

  • Contactors

  • Dilithium BMS

  • Elcon 6.6 kWh Charger

  • Pyro Fuse

  • DC-DC converter

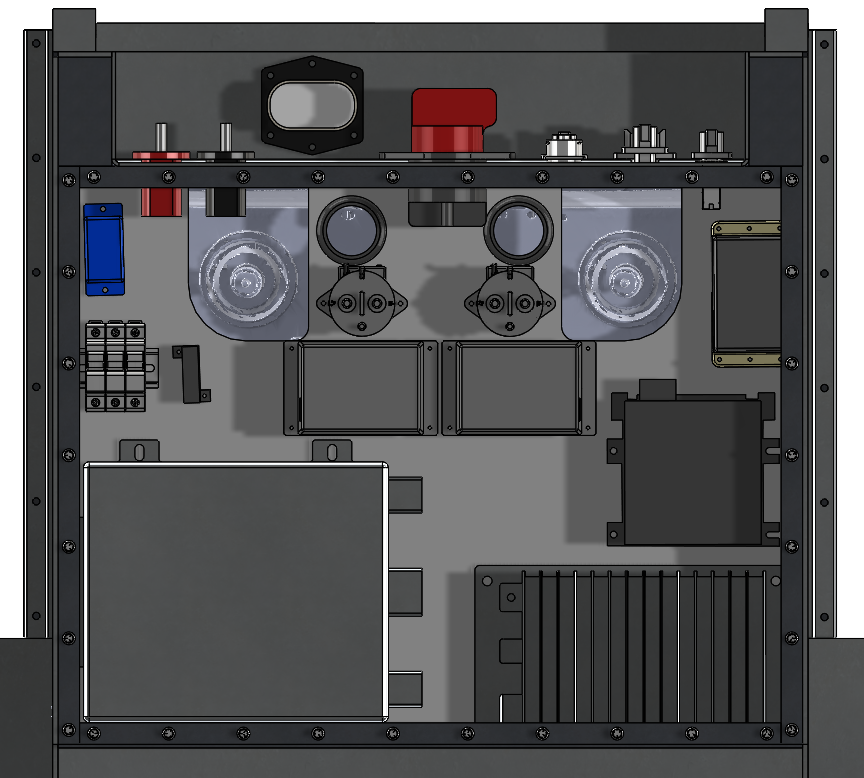

Top view of electronic or mechanical equipment with various components, including circular gauges, electrical connectors, and circuit boards.

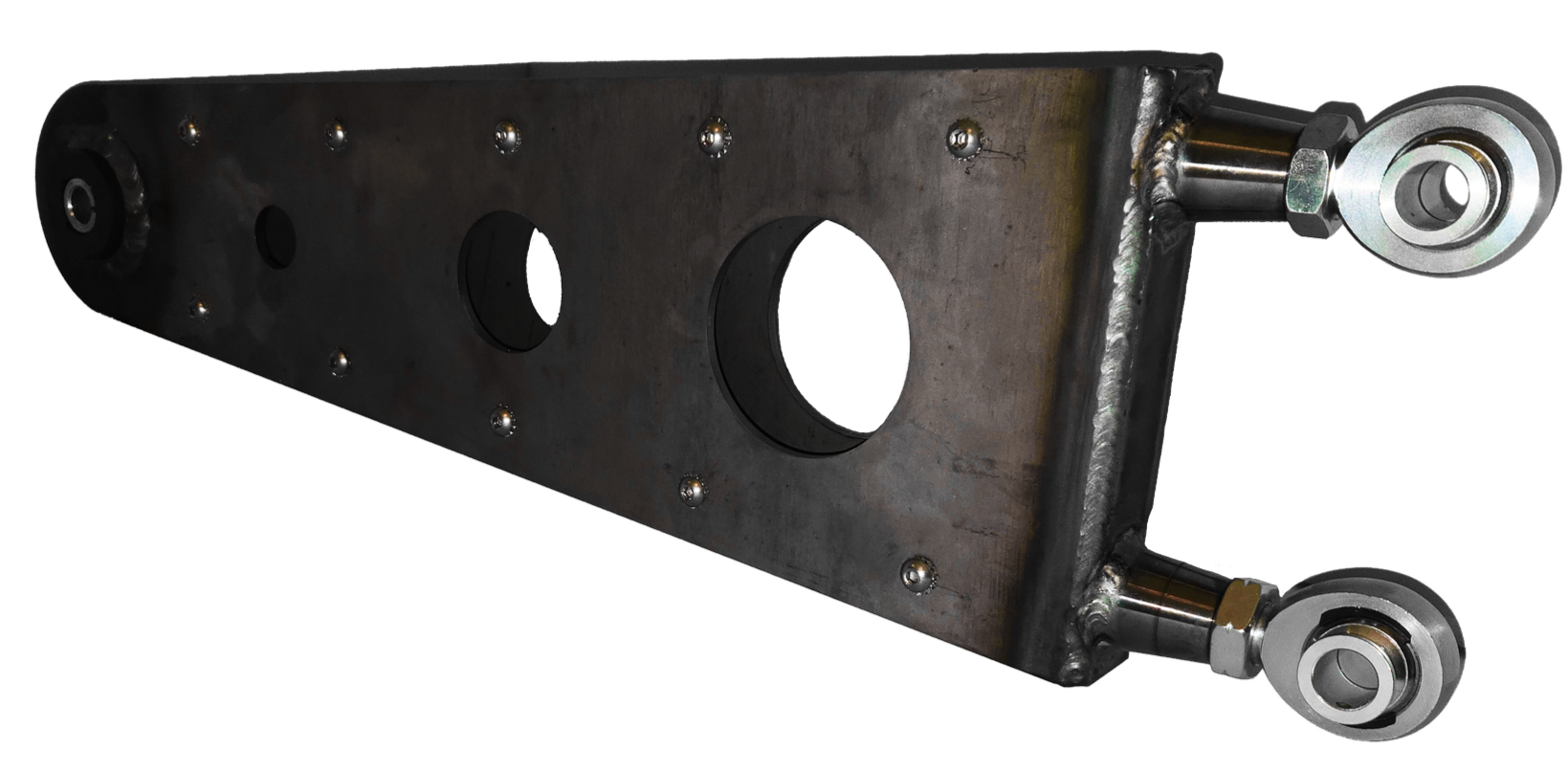

Trailing Arm

  • Made of 0.1875 Laser Cut Steel

  • 3/4 Chromoly Heims Joints

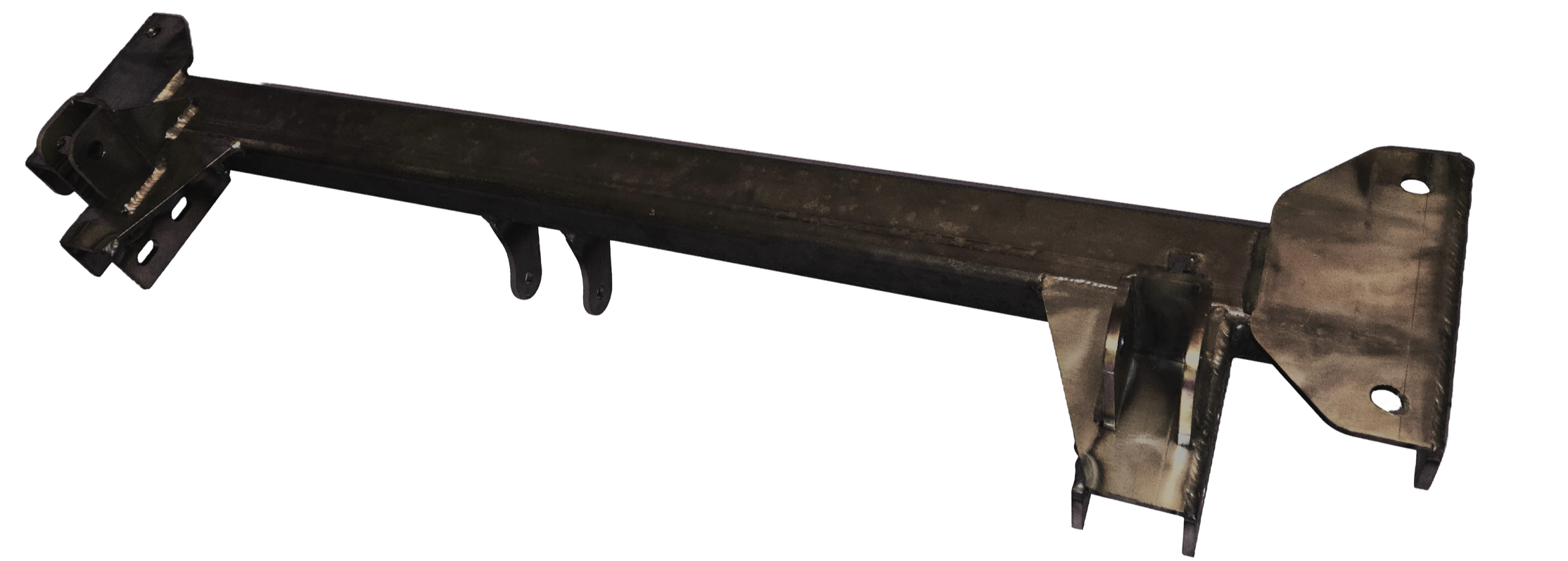

Cross member 2

  • Comes Tig welded and assembled

  • Bolts into frame

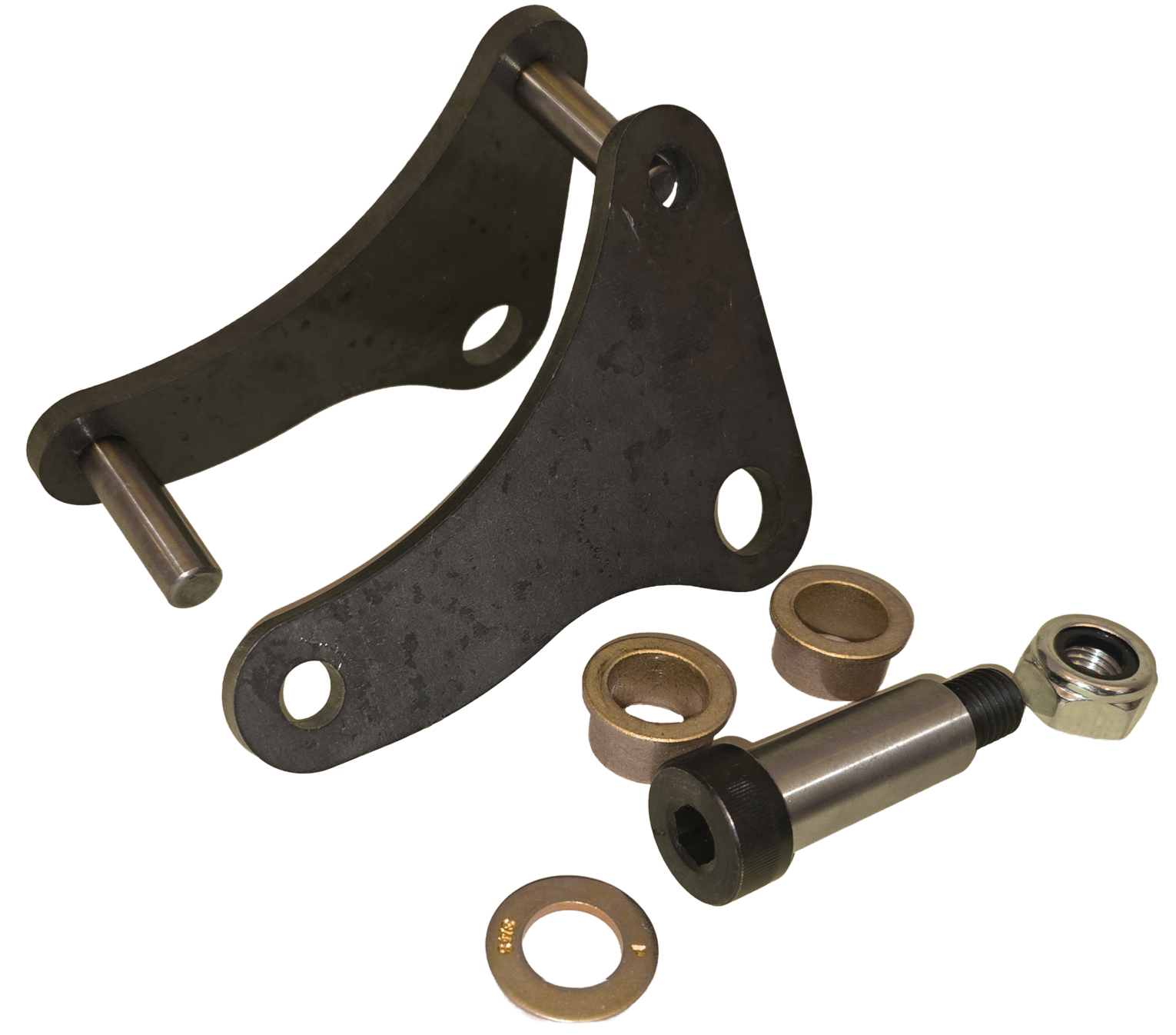

Inboard suspension rocker

  • Comes welded and assembled

  • Bolts into cross member/ coil over

Coil Overs (QA1 12 inch)

  • Bolts to rocker arm and cross member

A pair of metal coil shocks or suspension struts with black and chrome components, designed for vehicle suspension.

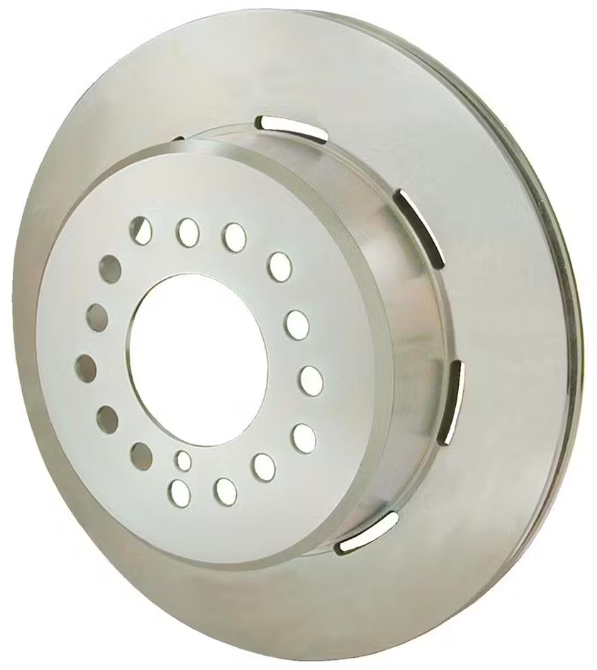

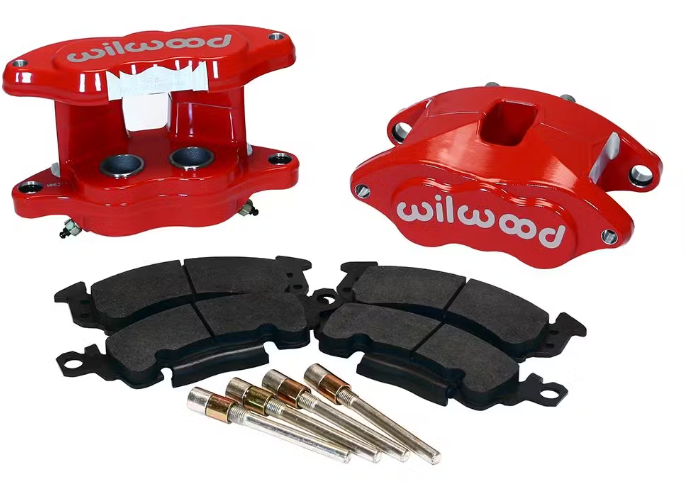

Calipers and rotors

  • Bolts to axle and wheel bearings

Set of Wilwood brake calipers, brake pads, and brake caliper mounting hardware.
A metallic disc brake rotor with multiple holes and slots for cooling and mounting.

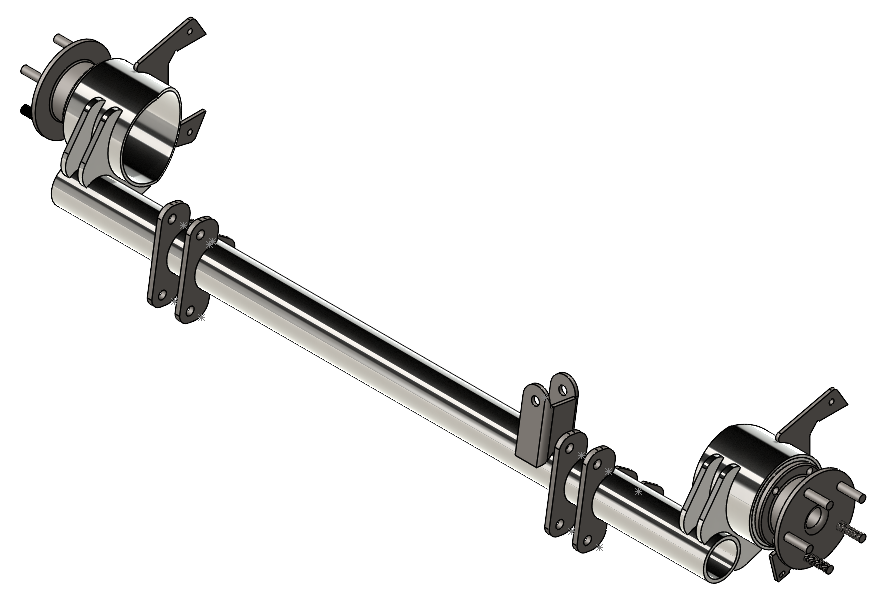

Axle

  • Bolts to trailing arms and pan hard bar

  • 60In Hub to Hub

Illustration of a mechanical shaft with two mounted bearings and connecting parts.

Motor

The motor will run up to 400 Volts, delivering more power at an affordable price than many of the other packages available. This kit includes the Tesla motor, inverter, gear box, and control unit (EV Controls), throttle pedal, throttle pedal plug and pins, brake switch, brake switch plug and pins, encoder plug and pins, inverter plug and pins, axle clips, 2 axles, pre-charge relay, and pre-charge resistor.

An electric motor or compressor with metallic body and red insulated wires connected at one end.

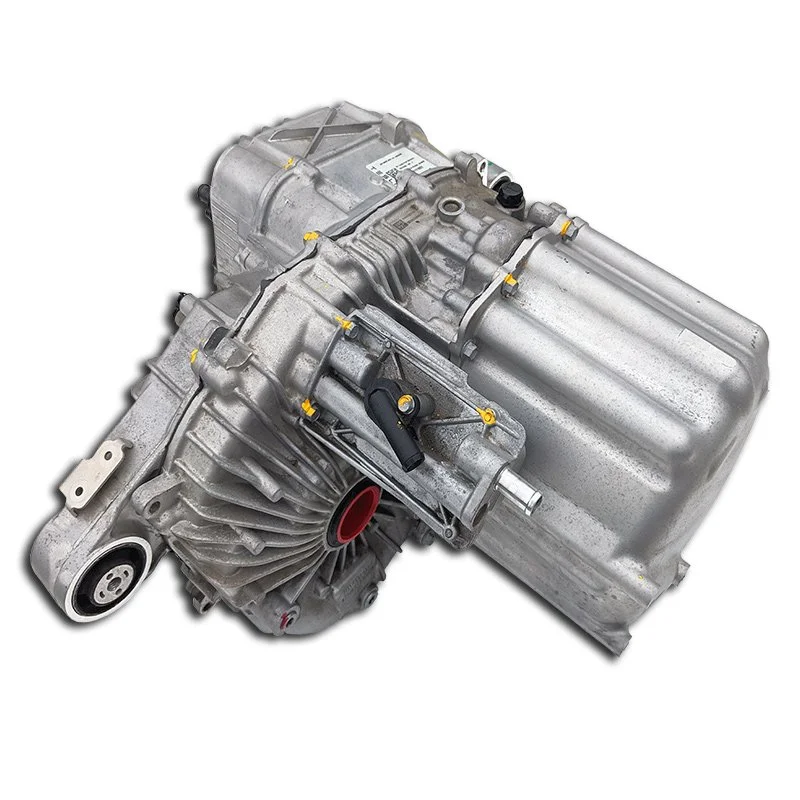

  • Small Drive Unit

    Max Current: 650 Amps

    Rated Power: 264 HP

    Input Voltage: 408 VDC

    Length: 25 in

    Width: 26.5 in

    Height: 13 in

    Weight: 194 lbs (88 kg)

    Precharge Circuit: Built In

    Warranty Period: 1 Year


  • An electric vehicle motor and transmission assembly.

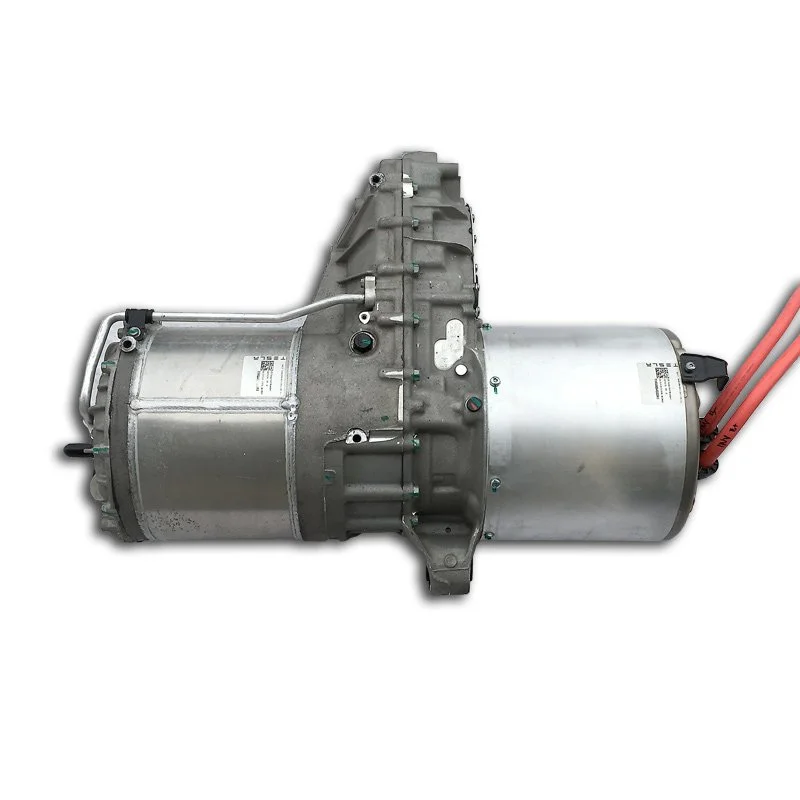

    Large Drive Unit

    Max Current: 1000 Amps

    Rated Power: 495 Hp

    Input Voltage: 400 Volts

    Length: 25 Inch

    Width: 34 Inch

    Height: 12 Inch

    Weight: 295 Lbs

    Precharge Circuit: Built In

    Warranty Period: 1 Year

Logo with the text 'EV WEST' and a shield-like emblem in black and green.

ROVIUM proudly sources all EV conversion components from EV West LLC. San Marcos, CA
